Dredgers
From suction and air-lift dredgers to booster stations and soil pressure systems, each component is developed with modular construction in mind. This approach ensures exceptional flexibility while keeping user costs down. Whether for large-scale, stationary setups or compact mobile units, our systems can be assembled or disassembled in under 10 working hours.
| Header | Header | Header |
|---|---|---|
| Cell | Cell | Cell |
| Cell | Cell | Cell |
| Cell | Cell | Cell |
| Cell | Cell | Cell |
| Cell | Cell | Cell |
Product offering
CSD Deep Cutting Cutter Suction Dredger
For extreme depths—up to 80 meters—our CSD-D dredgers deliver unmatched performance. When cutting below 22 meters, traditional containerized pontoons can’t handle the increased stress. Our solution? A heavy-duty external cutter ladder supported by widely spaced pontoons to counteract torsional forces.
| Name | From | Up to |
|---|---|---|
| 1 | - | 1 |
| 2 | - | 2 |
| 3 | - | 3 |
| - | ||
| - |
| Xmas tree system for precise repositioning and deep dredging without bulky spud poles | |
| Connectable suction tubes, allowing for accurate profile dredging | |
| Optimized structural stability, even at maximum depth | |
CSD Containerized
Our newly developed CSD-C series is engineered for easy international transport. Built using container-sized modules, these dredgers are simple to ship and can be deployed quickly. The modular design also allows for easy upgrades—entire modules can be swapped out to scale up your operation. Although the upfront investment is higher, the significantly lower operational costs make this an economically sound long-term solution.
| Name | From | Up to |
|---|---|---|
| 1 | - | 1 |
| 2 | - | 2 |
| 3 | - | 3 |
| - | ||
| - |
| Container-compatible design, eliminating on-site construction delays | |
| Electric drives for the cutter and sand pump, offering quiet, eco-friendly operation with low maintenance | |
| Xmas tree anchoring system in place of spud poles, enabling quick repositioning and operations at greater depths | |
| Robust O-shaped hull for improved stability and minimized force impact | |
Air Lift Dredger
In an air lift dredging system, a compressor on the surface pumps air into a pipe submerged in the water. The compressed air then rises through the pipe, creating a vacuum that sucks sediment from the bottom of the waterway and transports it to the surface through the same pipe. Once the sediment reaches the surface, it is separated from the water and discharged or used for land reclamation. Air dredging allows you to dredge at great depths. Another advantage is that the maximum dredging depth is more or less equal to the diameter of the suction pipe. Jan Bosman has built various airlift dredgers.
| Name | From | Up to |
|---|---|---|
| Dredging Depth | - | Up to 20 meters |
| Flow Rate | - | 200-500 m3/h |
| Pipe Diameter | - | 150-300mm |
| Power Source | - | Compressed Air |
| Material Suitability | - | Fine sediments, sludge, silt |
| Available for diver-operated and remote systems | |
| Configurable suction head sizes | |
| Compatible with standard air compressors | |
| Optional booster setup for longer pipeline | |
| Lightweight frame for modular transport |

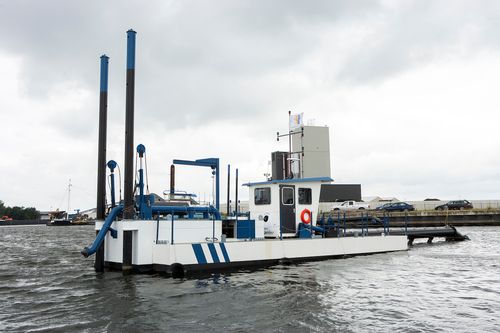

Cutter Suction Dredger
Our range of cutter suction dredgers (CSDs) covers a wide spectrum—from the CSD 150 to the CSD 750. While these are our standard models, every dredger is fully customizable to your project’s specific needs. Each vessel is truly made to measure. In addition to diesel-hydraulic systems, we have been building fully electric dredgers since 2002—combining sustainability with efficiency.
| Name | From | Up to |
|---|---|---|
| Production | - | Up to 6.000 m3/h |
| Dredging depth | - | Up to 25 meters |
| Total installed power | - | 4,500 kW |
| - | ||
| - |
| Heavy-duty cutter head | |
| Spud carriage system for precise positioning | |
| Onboard accommodation module | |
| Remote monitoring and automation system | |
Hopper Suction Dredger
Hopper suction dredgers are self-contained vessels equipped with powerful suction pumps that remove sediment from the seabed and store it in an onboard hopper. Ideal for port maintenance, land reclamation, and capital dredging projects, they offer efficient operation with minimal environmental impact. Their ability to transport and discharge dredged material directly makes them a flexible and cost-effective solution for many marine operations.
| Name | From | Up to |
|---|---|---|
| Height | - | 3 meters |
| Power | - | 2.000 kW |
| Production | - | 3.000 m/3h |
| Diameter | - | 500 mm |
| Weight | - | Up to 950 kg |
| 100% customizable for your needs | |
| Easy to move using our winches | |
| Remote control | |
| Electrically powered version | |
| Turn your booster station into a floating booster station |
Build for your challange
Whetheryou're working on inland projects, coastal dredging, or deep excavation, Holland Dredge Design offers innovative solutions that combine high performance with operational efficiency. Every dredger we build is tailored to your requirements—designed to perform, built to last.
Dredger specifications
Our dredgers are available in a variety of sizes and configurations to meet your project’s specific depth, production, and mobility requirements. Every build is engineered for maximum performance and low maintenance.
Available options and configurations
100% customizable for your needs
Easy to move using our winches
Remote control
Electrically powered version
Turn your booster station into a floating booster station
A wide range of specifications
Looking for something custom?
Need a dredger with unique features or operational capabilities? We specialize in building to your exact needs—custom depths, power systems, hulls, and more.
Looking for a custom dredging solution?
Whether you need a compact dredger for shallow maintenance or a large-scale cutter suction system, our engineers are ready to help you scope, design, and build the ideal setup.
